Patch Cord SC-SC Duplex 5 Mtrs MultiMode

Patch Cord SC-SC Duplex 5 Mtrs SingleMode


  • High Quality and Cost-effective Fiber Optic Patch Cords
  • High Quality and Cost-effective Fiber Optic Patch Cords
  • High Quality and Cost-effective Fiber Optic Patch Cords
  • High Quality and Cost-effective Fiber Optic Patch Cords

Patch Cord SC-SC Duplex 5 Mtrs SingleMode


  • High Quality and Cost-effective Fiber Optic Patch Cords

  • Description
  • Specification

High Quality and Cost-effective Fiber Optic Patch Cords

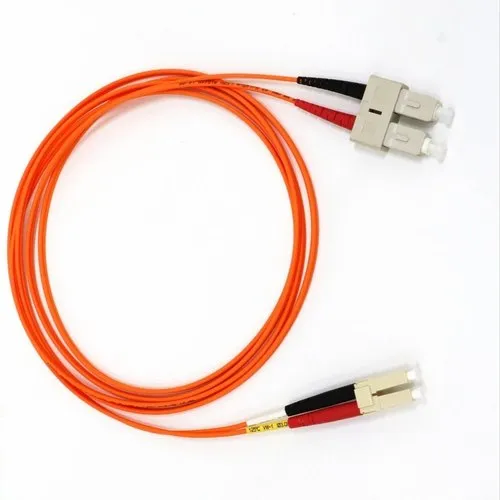

The Multimode fiber optic Patch Cord is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed. It is Push-Pull type fiber optic Connector. It features low cost, simplicity, and high durability. The SC fiber optic patch cord has an advantage in keyed connectors to supports Send /Receive channels. The fiber optic patch cord is optically tested for insertion loss to ensure high quality.

Technical Specifications
Connector SC to SC
Fiber Mode 62.5/125μm / 50/125μm
Polish UPC to UPC
Fiber Type Duplex
Insertion loss ≤0.3dB
Return loss ≥20dB
Typical Change 1000 Matings
Operating temperature -40~75°C
Polarity A(Tx) to B(Rx)
Jacket OD 2.0mm
Jacket Color** Yellow, Orange, Aqua Marine
Wavelength 850/1300nm
Jacket Material PVC
Interchangeability ≤0.2dB
Vibration ≤0.2dB
Length 3m
Storage temperature -45~85°C
Fiber Grade G.651
