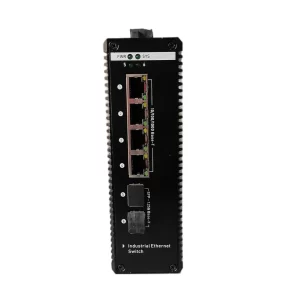

BluBoxx BBIES-M-4GE2GF Industrial Managed Ethernet Switch with 2 SFP Uplink
Ports | 4 10/100/1000BASE-T RJ45 |
| auto MDI/MDIX ports | |
| SFP Slots | 2 1000 Base-X SFP Slots |
| Console Port | 1 Console port |
- Description
- Specification
Introducing the Industrial Ethernet Switch, a cutting-edge networking solution designed to meet the demands of industrial environments. This versatile switch, available through authorized supplier Bluboxx Communication Pvt Ltd in Pune and Mumbai, boasts a range of key features that make it ideal for various industrial applications.
Key Features:
Port Diversity: The switch offers 4*10/100/1000Mbps ports, ensuring high-speed connectivity for data-intensive tasks. Additionally, it includes 2 1000Mbps SFP (Small Form-factor Pluggable) ports, allowing for flexible fiber optic connections.
Self-Adaptive RJ45 Ports: The RJ45 ports feature automatic speed detection (10/100/1000Mbps Auto MDI/MDIX), making network setup hassle-free.
Industrial Installation: With its Din Rail mounting installation, this switch is tailor-made for industrial environments, including railways and traffic systems, where reliability and durability are paramount.
Surge Protection: To safeguard your network infrastructure, this switch incorporates surge protection, shielding your devices from lightning surges and other electrical hazards.
Managed Capabilities: Enjoy the convenience of remote web management, VLAN support, storm control, and IPV6 management. These features empower administrators to optimize network performance and security.
Wide Operating Temperature Range: With an impressive operating temperature range of -40 to 85 degrees Celsius, this switch remains reliable even in extreme environmental conditions.
Considerate Design: The IP40 industrial design ensures robust protection against dust and moisture, while the dual power input adds an extra layer of redundancy for uninterrupted operation.
For all your industrial networking needs in Pune and Mumbai, Bluboxx Communication Pvt Ltd is your trusted partner and authorized supplier of Industrial Ethernet Switches. Whether you are seeking an Industrial Ethernet Switch Dealer, Supplier, or simply require high-quality Industrial Ethernet Switches, Bluboxx Communication Pvt Ltd has you covered. Choose our solutions to empower your industrial network and drive efficiency in your operations.
| Hardware Specifications | |
|---|---|
| Connector | 4 10/100/1000BASE-T RJ45 ports |
| 2 1000 Base-X SFP Slots | |
| Console Port | 1 Console port |
| LED Display | Power Indicator: PWR (green) |
| Network Indicator: Link (yellow) | |
| Thermal Fan | Fanless Design |
| Installation | Din Rail |
| Switch Architecture | Store and Forward |
| Transmission Model | IEEE802.3X full-duplex and Backpressure half-duplex |
| Switch Performance | |
| Backplane Bandwidth | 32Gbps |
| Packet Forwarding Rate | 12.93Mpps |
| MAC Address | 8k |
| Power Requirement | DC 12V~56V |
| ESD Protection | 6KV ESD |
| Dimension | (W×D×H) 48mm x 110mm x 150mm |
| Weight | 1.1kg |
| Key Features | |
|---|---|
| Ports | 4*10/100/1000Mbps ports with 2 1000Mbps SFP |
| Self-Adaption | RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX |
| Industrial Installation | Din Rail mounting installation |
| Wide Application | Designed for Railway, traffic, etc., in some Industrial environments |
| Surge Protection | Protects the device from lightning surges and other electrical hazards |
| Managed | Support remote web managed, VLAN, storm control, and IPV6 management, etc. |
| Working Temperature | -40 to 85 degrees operating temperature |
| Considerate Design | IP40 Industrial design with dual power input |
| Standards Conformance | |
|---|---|
| Network Standard | IEEE802.3i 10 BASE-T |
| IEEE802.3u 100 BASE-TX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3x Flow Control | |
| IEEE802.3az EEE | |
| Stability Testing | FCC CFR47 Part 15, EN55022/CISPR22, Class A |
| EMS | IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) |
| IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) | |
| IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV | |
| IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | |
| IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) | |
| IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) | |
| IEC 60068-2-32 (free fall) | |
| IEC 60068-2-27 (shock) | |
| IEC 60068-2-6 (vibration) |
| Layer 2 Functions | |
|---|---|
| Port Mirroring | TX / RX / both, Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN |
| Up to 256 VLAN groups, out of 4094 VLAN IDs | |
| 802.1ad Q-in-Q tunnelling | |
| Voice VLAN; Protocol VLAN; Private VLAN (Protected port), GVRP | |
| Link Aggregation | IEEE 802.3ad LACP and static trunk |
| Supports 8 groups of 8-port trunk | |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol |
| RSTP, IEEE 802.1w Rapid Spanning Tree Protocol | |
| MSTP, IEEE 802.1s Multiple Spanning Tree Protocol | |
| IGMP Snooping | IGMP (v2/v3) snooping |
| IGMP querier | |
| Up to 256 multicast groups | |
| MLD Snooping | MLD (v1/v2) snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL |
| QoS | 8 mapping ID to 8 level priority queues |
| Port number | |
| 802.1p priority | |
| 802.1Q VLAN tag | |
| DSCP field in IP packet | |
| Traffic classification based, strict priority and WRR | |
| Security | IEEE 802.1X port-based authentication |
| Built-in RADIUS client to co-operate with RADIUS server | |
| RADIUS / TACACS+ user access authentication | |
| IP-MAC port binding | |
| MAC filtering | |
| Static MAC address | |
| DHCP Snooping and DHCP Option82 | |
| STP BPDU guard, BPDU filtering and BPDU forwarding | |
| DoS attack prevention |
