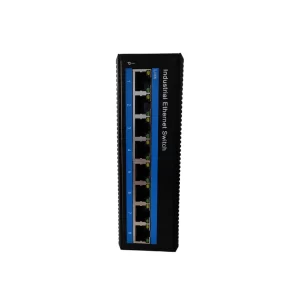

BluBoxx BBIES-U-8FE 8-Port 10/100Mbps Industrial Ethernet Switch
| Ethernet Ports | 8 x 10/100Mbps |
| Self-Adaption | RJ45 port supports 10/100Mbps Auto MDI/MDIX |
| Industrial Installation | Din Rail mounting |
- Description
- Specification
Introducing the BBIES-U-8FE Ethernet Switch – Your Industrial Networking Solution
Are you in need of a reliable Industrial Ethernet Switch for your networking needs? Look no further than the BBIES-U-8FE Ethernet Switch, a cutting-edge product designed to meet the demands of industrial environments. As the authorized supplier for industrial Ethernet switches in Pune and Mumbai, Bluboxx Communication Pvt Ltd proudly presents this robust solution to cater to your connectivity requirements.
Key Specifications:
Port Configuration:
- 8 Copper Ports: 10/100BASE-T RJ45 auto-MDI/MDI-X ports.
- Connector: Removable 4-pin terminal block.
- Pin Configuration: Pin 1/2 for Power 1; Pin 3/4 for Power 2.
LED Display:
- Power Indicator: PWR (Green).
- Network Indicator: Link (Yellow).
Power Requirements:
- Operates on a wide voltage range of 12~52V DC.
- Power Consumption: Less than 2 Watts.
Switch Performance:
- Backplane Bandwidth: 3.2 Gbps.
- Flow Control: Back pressure for half duplex.
- IEEE 802.3x pause frame for full duplex.
- Packet Forwarding Rate: 2.4 Mpps.
Enclosure:
- Rugged IP40 metal case ensures durability and protection.
- Suitable for industrial environments.
ESD Protection:
- Safeguarded with 6KV ESD protection.
Compact Design:
- Dimensions (W x D x H): 45 x 105 x 143 mm.
- Weight: 0.46 Kg.
Bluboxx Communication Pvt Ltd, an authorized supplier, offers the BBIES-U-8FE Ethernet Switch as your trusted Industrial Ethernet Switch Dealer and Supplier in Pune. With our high-quality product and expertise, we provide the best-in-class industrial networking solutions tailored to meet your specific needs.
For reliable, high-performance industrial networking, choose the BBIES-U-8FE Ethernet Switch from Bluboxx Communication Pvt Ltd. Your partner in seamless connectivity solutions for the industrial sector.
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 10/100BASE-T RJ45 auto-MDI/MDI-X ports |
| Connector | Removable 4-pin terminal block |
| Pin 1/2 for Power 1; Pin 3/4 for Power 2 | |
| LED Display | Power Indicator: PWR (green) |
| Network Indicator: Link (yellow) | |
| Power Requirements | 12~52V DC |
| Power Consumption | Less than 2 Watts |
| Switch Performance | |
| Backplane Bandwidth | 3.2 Gbps |
| Packet Forwarding Rate | 2.4 Mpps |
| Enclosure | IP40 Metal case |
| MAC Address | 4k |
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |
| Key Features | |
|---|---|
| Ports | 8*10/100Mbps Ethernet ports |
| Self-Adaption | RJ45 port supports 10/100Mbps Auto MDI/MDIX |
| Industrial Installation | DIN Rail mounting installation |
| Surge Protection | Protects the device from lightning surges and other electrical hazards |
| Working Temperature | -40 to 85 degrees operating temperature |
| Standards Conformance | |
|---|---|
| Network Standard | IEEE802.3i 10 BASE-T |
| IEEE802.3u 100 BASE-TX | |
| IEEE 802.3x Full-Duplex Flow Control |
| Stability Testing | |
|---|---|
| FCC CFR47 Part 15, EN55022/CISPR22, Class A | |
| EMS: | |
| IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) | |
| IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) | |
| IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV | |
| IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | |
| IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) | |
| IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s) | |
| IEC 60068-2-32 (free fall) | |
| IEC 60068-2-27 (shock) | |
| IEC 60068-2-6 (vibration) |
| Environment | |
|---|---|
| Environment Specification | |
| Operating Temperature: -40℃~85℃, operating humidity: 5%~95% | |
| Storage Temperature: -40℃~85℃, storage humidity: 5%~95% |
| Ordering Information | |
|---|---|
| BBIES-U-8FE | 8-Port 10/100Mbps Industrial Ethernet Switch |
