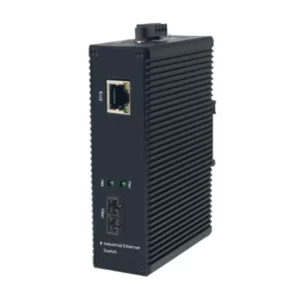

Model: BBIMC-1FE1FF-SM-SC

Ports:

• 1 x 10/100BASE-T RJ45 auto-MDI/MDI-X port: This Ethernet port supports both 10Mbps and 100Mbps data transfer speeds and automatically detects the cable type (straight-through or crossover).
• 1 x 155Mbps SC port: This port uses an SC connector and is designed for high-speed data transfer at 155Mbps.

Connector:

• Removable 4-pin terminal block: This terminal block features four pins, with pins 1 and 2 designated for Power 1 and pins 3 and 4 for Power 2.

LED Display:

• Power Indicator (PWR): A green LED indicator that displays the power status of the device.
• Network Indicator (Link): A yellow LED indicator that shows the network link status.
• SC Indicator: A green LED indicator specific to the SC port.

Power Requirements:

• Operates on a power supply ranging from 12 to 36V DC.

Power Consumption:

• Consumes less than 2 watts of power, making it energy-efficient.

Power Protection:

• Offers protection features including reverse protection, over-voltage protection, and over-current protection to safeguard the device and connected equipment.

Fiber:

• Dual fiber with a distance of up to 15 kilometers, using SC connectors. This allows for reliable long-distance fiber optic connections.

Switch Performance:

• Backplane Bandwidth: Provides a backplane bandwidth of 1Gbps.
• Packet Forwarding Rate: Capable of forwarding packets at a rate of 0.75 million packets per second.
• MAC Address: Supports up to 2,000 MAC addresses for efficient network communication.
• Flow Control: Utilizes back pressure for half-duplex communication and IEEE 802.3x pause frames for full-duplex flow control.

Enclosure:

• Housed in an IP40-rated metal case, ensuring protection from dust and limited ingress of water.

ESD Protection:

• Offers ESD protection of 6KV, safeguarding the device from electrostatic discharge.

Dimensions:

• Compact dimensions of 28 x 90 x 126mm (1.1in x 3.54in x 4.96in) for space-efficient installation.

Weight:

• Weighs 0.55 kilograms, making it relatively lightweight and easy to handle.

The BBIMC-1FE1FF-SM-SC is a versatile and robust networking device suitable for various industrial applications, with features such as dual fiber support, power protection, and a durable metal enclosure.
