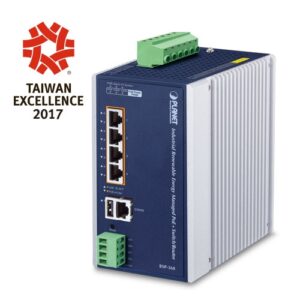

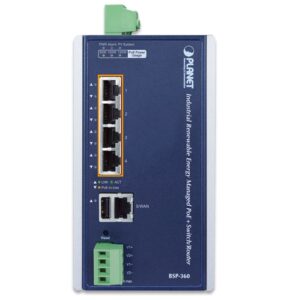

BSP-360 Managed PoE Renewable Switch
Copper Ports:
- LAN: 5 10/100/1000Mbps auto MDI/MDI-X RJ45 ports (Port 1 to Port 5, bridge mode)
- WAN: 1 10/100/1000Mbps auto MDI/MDI-X RJ45 port (Port 5, gateway mode)
PoE Injector Port: 4 ports with 802.3af/802.3at PoE injector function (Port 1 to Port 4)
- Description
- Specification
- Application
Leading PoE-Renewable Power System Integration
PLANET's new Renewable Energy Industrial 802.3at PoE Managed Ethernet Switch, BSP-360, deploys a surveillance or wireless network and remotely manages IP-based devices. The BSP-360's green technology allows it to be charged by solar, wind, and hydroelectric power to economically power remote IP cameras and wireless APs in dams, forests, deserts, national parks, nature/animal protection areas, and highways.
MQTT and ONVIF Protocols allow PLANET NMS-360 Network Management Controller to centrally manage 512 BSP-360 units and 2,048 PLANET IP cameras. Visit PLANET frequently for the newest managed device compatibility list.

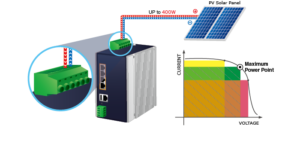

MaxPowerPointTracking charging controller
An MPPT (Maximum Power Point Tracker) electronic DC-to-DC converter enhances PV solar panel-battery bank or utility grid match. They convert solar panels' and wind turbines' higher DC output to the lower voltage needed to charge the battery. It accepts 400W PV modules.

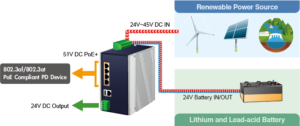

Carbon-Free, Stable Power
The BSP-360 recharges 24V lithium or lead-acid batteries with solar electricity. Therefore, the BSP-360 will power PD devices without cabling. Renewable energy powers its zero-carbon feature. Most notably, outside wireless IP-based monitoring can continue at night when the battery is charged.
Intelligent Battery Management
Special power management functions on the BSP-360:
Current battery usage percentage
Low-voltage cutoff
Powerful hold time protection

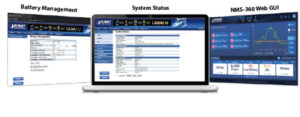

Easy, Secure Management

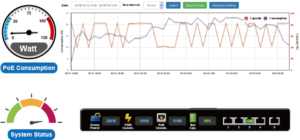

The administrator can remotely access the BSP-360 to check battery and renewable energy power and predicted power consumption.
The BSP-360 has web and SNMP interfaces for efficient management. BSP-360's web-based management interface makes platform-independent management and configuration simple. Any management software can handle the switch because it supports SNMP.

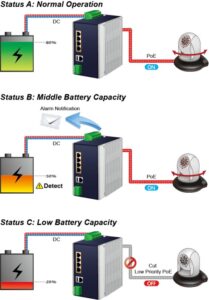

Low-Voltage Cutoff
If the remaining energy is too low to power the network, the system powers off the device to ensure normal operation and sends an alert to the administrator.
Smart PoE PD Management with PLANET ONVIF IP Carmera
As a managed PoE switch for surveillance, WLAN, and VoIP networks, the BSP-360 has these particular characteristics:
Live PD check
Scheduled power recycling
PoE scheduling and use monitoring
Management of ONVIF:
Discovers PLANET ONVIF IP cameras
A single BSP-360 switch can power four PLANET ONVIF IP cameras.
LAN IP camera snapshot support.
AI-Powered Device Alive Check
The BSP-360 can ping connected PDs to monitor their status in real time. Once the PD stops responding, the BSP-360 will restore PoE port power and restart it. Resetting the PD's power source via the PoE connector will improve network reliability and reduce administrator management.
| Ordering Information | |
|---|---|
BSP-360 | Industrial Renewable Power 5-Port Gigabit Managed Switch with 4-Port 802.3at PoE+ |
| Hardware Specifications | |
|---|---|
| Copper Ports | LAN: 5 10/100/1000Mbps auto MDI/MDI-X RJ45 port (Port 1 to Port 5, bridge mode) WAN: 1 10/100/1000Mbps auto MDI/MDI-X RJ45 port (Port 5, gateway mode) |
| PoE Injector Port | 4 ports with 802.3af/802.3at PoE injector function (Port 1 to Port 4) |
| USB | 1 USB Type A female for setting backup |
| Power Output | 4 PoE out 51VDC; max. 36 watts per PoE port 2 DC out 24@ 2A maximum (four-pin terminal block) * The voltage of DC out is based on the battery. |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 10Gbps/non-blocking |
| Switch Throughput@64 bytes | 5.95Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 512Kbit |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Reset Button | < 5 sec: System reboot > 10 sec: Factory default |
| LED Indicators | 3 LEDs for System and Power: - Green: Power - Red: Alarm - Green: PV System 4 LEDs for PoE Copper Ports (Port 1~Port 4): - Green: LNK/ACT - Amber: PoE-in-use 1 LED for 10/100/1000T Copper Port (Port 5): - Green: LNK/ACT 3 LEDs for PoE Power Usage (W) - Amber: 50, 100 and 120W |
| Connector | Removable 6-pin terminal block Pin 1/2 for PV panel; Pin 3/4 for alarm; Pin 5/6 for battery |
| Alarm | 1 digital output (DO): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Open collector to 24V DC, 100mA max. |
| Power Requirements | PV in: 24~45V DC Battery in/out: 24V DC |
| Power Consumption/ Dissipation | 5.04 watts, 17.1BTU (Standby without PoE function) 6.96 watts, 23.7 BTU (Full loading without PoE function) 135.36 watts, 461.5 BTU (Full loading with PoE function) |
| Dimensions (W x D x H) | 89 x 107 x 152 mm |
| Weight | 1251g |
| ESD Protection | 6KV DC |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail kit and wall-mount ear |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at Power over Ethernet PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 51V DC, 275mA. Max. 15.4 watts (IEEE 802.3af) Per port 51V DC, 535mA. Max. 36 watts (IEEE 802.3at) |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Budget | 120 watts (PoE consumption + DC out and depending on power input) |
| Max. Number of Class 2 PDs | 4 |
| Max. Number of Class 3 PDs | 4 |
| Max. Number of Class 4 PDs | 4 |
| Renewable Power Input (PV IN) | |
| Min. Voltage | 24V (Suggest > 30V for fully charge to battery) |
| Max. Voltage | 45V |
| Max. Current | < 8.8A |
| Max. Power | < 400W |
For a long-distance wireless surveillance solution, use a solar PoE power supply.
Anywhere in the city without direct AC electricity can use the BSP-360 PoE Managed Switch. You may examine the current energy usage and battery state in your office using the BSP-360's configuration interface with PoE over Cat5 cable, wireless AP, and SFP media converter.

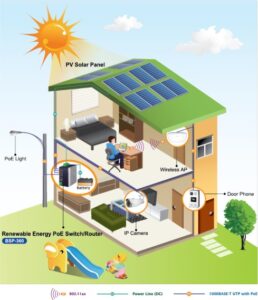

Gigabit Ethernet PoE Network Deployment for SOHO/Home Use
The BSP-360 Renewable Energy PoE Switch's expanded home-use capability enables SOHO/home users to quickly build an integrated network for the transmission of data and video. It incorporates a renewable energy system and IEEE 802.3at PoE technology. The BSP-360, which injects power through the Ethernet cables, perfectly complements the wireless AP and PoE IP camera devices, making it simple for SOHO/home customers to create an affordable and dependable PoE network environment.
Ordering Information
BSP-360
Industrial Renewable Power 5-Port Gigabit Managed Switch with 4-Port 802.3at PoE+
