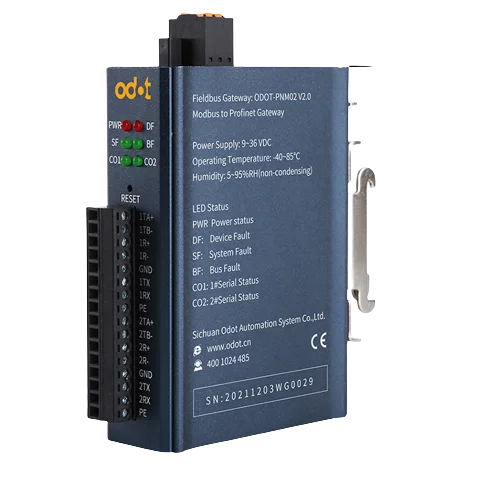

ODOT-PNM02 V2.0 / V2.1: MODBUS-RTU/ASCLL TO PROFINET CONVERTER
- Supports protocol conversion between Modbus and PROFINET
- Supports 2* RS485/RS232 or 1*RS422
- Supports Modbus master or slave, and supports RTU or ASCII
- Description
- Specification
A Modbus-RTU/ASCII or non-standard protocol to ProfiNet protocol converter is the ODOT-PNM02 V2.0/V2.1 gateway. It is capable of converting non-standard or Modbus-RTU/ASCII protocols to ProfiNet. This solution enables connecting with the industrial bus ProfiNet on any device that has an RS485/RS232/RS422 interface and supports the Modbus-RTU/ASCII or proprietary protocol. A few examples include: PLC, DCS, remote IO, VFD, scanner, motor start protection device, intelligent high and low voltage electrical appliances, electricity measurement device, intelligent field measuring equipment and instruments, etc.
ODOT-PNM02 V2.0 is compatible 50 maximum slots
60 slaves (200 read and write commands) are supported by ODOT-PNM02 V2.1.
The GSD configuration of PNM02L V2.0 in GSDMLV2.33-ODOT-PNM02-V2.0 is used by the product designated as ODOT-PNM02 V2.0 and the GSD file. The product is labelled as ODOT -PNM02 V2.1, and the GSD file is formatted as GSDMLV2.33-ODOT-PNM02-V2.0, which uses the GSD configuration of PNM02L V2.1.
PNM02V2.0 and PNM02V2.1 are different in that V2.0 allows for the direct submission of GSD files to the TIA Portal for configuration.
While the overall parameter settings for V2.1 will be made in TIA Portal, the specific configuration parameters must be made with IO CONFIG.
In IO CONFIG, it can choose the gateway configuration mode.
| Property | Specification |
|---|---|
| Shell | Aluminum alloy |
| Weight | 335g |
| Dimensions | 27.5 x 110 x 80mm |
| Working Temperature | -40°C to 85°C |
| Storage Temperature | -55°C to 125°C |
| Relative Humidity | 5% to 95% (no condensation) |
| Input Voltage | 9V to 36V DC |
| Wiring | 3.81mm plug screw terminal |
| Power | Max. 200mA at 24V |
| Modbus Serial | |
| - Port Number | 2 |
| - Serial Port | RS485/RS422/RS232 |
| - Wiring | 3.81mm plug screw terminal |
| - ESD Protection | ±16KV |
| - Rs485 Terminal Resistance | External 120Ω |
| - Data Bits | 7, 8 |
| - Stop Bits | 1, 2 |
| - Checkdigit | None, even, odd |
| - Baud Rate | 2400bps to 115200bps |
| - Function Code | 01/02/03/04/05/06/15/16 |
| Ethernet Interface | |
| - Protocol | PROFINET |
| - ODOT-PNM02 V2.0 | Maximum slots: 50 |
| - ODOT-PNM02 V2.1 | Supports 60 slaves (200 read and write commands) |
| - Terminal Number | 2 ways |
| - Speed | 10/100Mbps self-adaption, Auto-MDI/MDIX |
| - Connector | 8 Pin RJ45 |
| - Isolation Protection | Electromagnetic isolation |
| Main Technical Parameters | |
| - Installation | 35mm standard Din-rail |
| - Supports Protocol | PROFINET I/O Device V2.3 |
| - PROFINET Data Area | Max. input of 1440 bytes & Max. output of 1440 bytes |
| - Serial Isolation | Optical coupler isolation and power isolation |
| - Serial Number | Supports 2RS485/RS232 or 1RS422 |
| - Serial Terminal Resistance | External resistance of 120Ω |
| - Serial Protocol | Supports Modbus-RTU/ASCII master, Modbus-RTU/ASCII slave |
| - Serial Parameters | Baud rate of 1200~115200bps, supports none, even and odd digit check |
| - Stations Supported | Modbus 62pcs |
| - Function Code Support | Modbus 01/02/03/04/05/06/15/16 |
| IP Grade | IP20 |
| Others | |
| - Certificate | EMC, CE |
| - Warranty | 3 years |
