In a 1U case, the PLANET IGS-6325-20T4C4X Industrial Layer 3 Managed Switch supports Layer 3 IP routing and has 24 10/100/1000Mbps ports, 4 shared SFP ports, and 4 10G SFP+ ports. The IGS-6325-20T4C4X can manage extraordinarily huge amounts of data in a secure topology connecting to an industrial backbone or high capacity servers thanks to its 10Gbps uplink. In the temperature range of -40 to 75 degrees Celsius, the IGS-6325-20T4C4X can deliver non-blocking switch fabric and wire-speed throughput as high as 128Gbps. The processes involved in updating the industrial LAN to meet rising bandwidth demands are significantly streamlined. Furthermore, the IGS-6325-20T4C4X, when installed in the cabinet, has a user-friendly "Front Access" design for simple wiring and maintenance.

Support for Layer 3 Routing

The Layer 3 IPv4/IPv6 VLAN static routing and IPv4 OSPFv2 (Open Shortest Path First) settings may both be configured manually and automatically on the IGS-6325-20T4C4X, which makes it easier for network administrators to increase network efficiency. The OSPF is a link-state-based internal dynamic routing mechanism for autonomous systems. By exchanging link states among Layer 3 switches, the protocol builds a database of link state, and then uses that database to form a route table using the Shortest Path First method.

Network Security Solution to Reduce Security Risks

Virtually no effort or expense is required to implement the cybersecurity feature offered to protect the switch management in a mission-critical network. The IGS-6325-20T4C4X has SNMP, console, and web administration interfaces for effective management. The IGS-6325-20T4C4X provides an accessible, platform independent management and configuration capability with its built-in web-based management interface. The IGS-6325-20T4C4X is SNMP-compatible and may be managed using any management program that uses the SNMP protocol as a foundation. The IGS-6325-20T4C4X delivers Cisco-like command via Telnet or console port, which reduces product learning time because the client doesn't need to learn new command from these switches. Additionally, by supporting SSH, SSL, and SNMP v3 connections, which can encrypt the packet content during each session, the IGS-6325-20T4C4X provides remote secure management.

Flexible Network Connectivity for Factory Automation is provided through Modbus TCP.

The IGS-6325-20T4C4X may readily interface with SCADA systems, HMI systems, and other data acquisition systems in factory floors thanks to the Modbus TCP/IP protocol that is supported. Administrators may simply improve factory monitoring and maintenance by remotely monitoring the industrial Ethernet switch's working information, port information, and connection status.

For Industrial Computing Networks, 1588 Time Protocol

The IGS-6325-20T4C4X supports MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet, making it the perfect choice for telecom and carrier Ethernet applications.

DC and AC Power Redundancy for Continuous Operation

In order to assure continuous operation, the IGS-6325-20T4C4X has a dual 3660V DC power supply and a 100240V AC power supply that are used as redundant power supplies. Its redundant power system was created expressly to meet the needs of high-tech buildings that demand the highest level of power integrity. Additionally, the IGS-6325-20T4C4X can be used as a telecom level device and installed in practically any challenging environment thanks to the 3660V DC power supply that is integrated.

External Alarm Digital Input and Digital Output

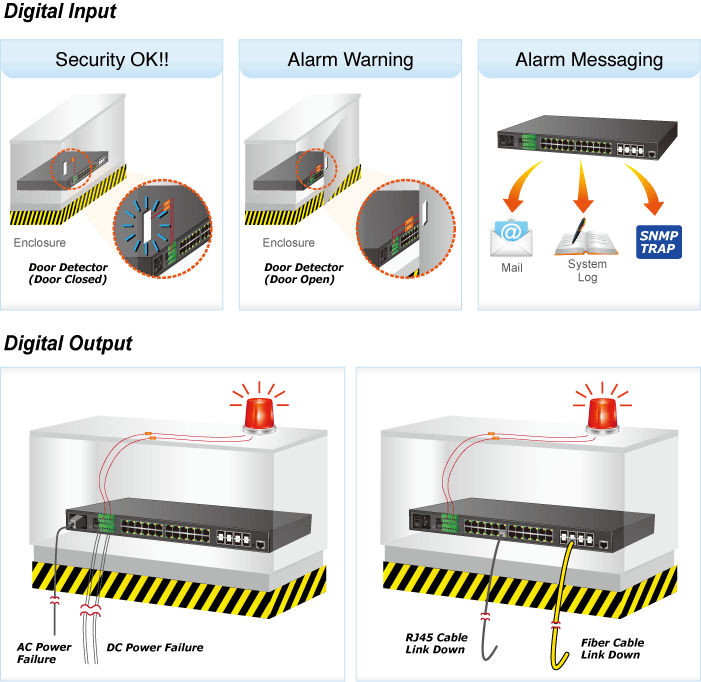

The IGS-6325-20T4C4X provides Digital Input and Digital Output for external alarm device on the front panel to assist network administrators in effectively managing the unforeseen network scenarios. The state of external devices, such as door incursion detectors, can be detected and recorded using the digital input. If there is a power outage or port link-down on the IGS-6325-20T4C4X, an alarm could be sent using the digital output.

An efficient alarm alert for increased protection

The Fault Alarm feature of the IGS-6325-20T4C4X can notify users when there is a problem with the switches. The users wouldn't have to waste time trying to locate the issue with this great function. It will contribute to time and human resource savings.

Fast Recovery for Critical Network Applications with Redundant Ring

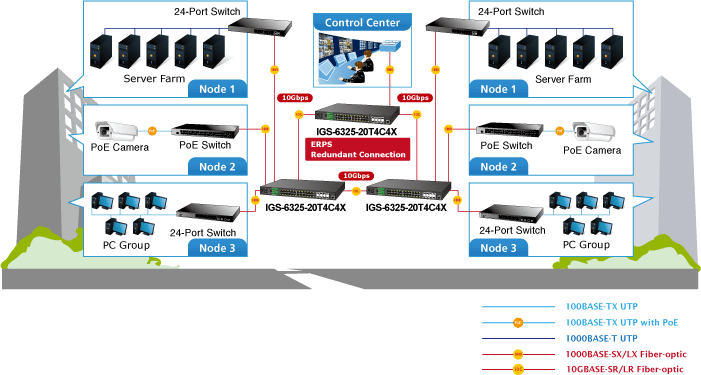

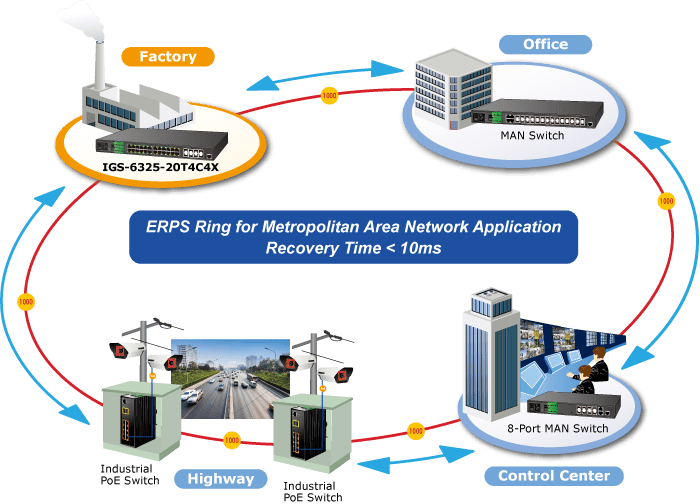

To avoid disruptions and outside intrusions, the IGS-6325-20T4C4X uses redundant ring technology and has a powerful, quick self-recovery capability. To increase system dependability and uptime in challenging factory conditions, it integrates modern ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system. The recovery time of a data link in a certain, straightforward Ring network can be as quick as 10ms.

Dual IPv6/IPv4 Stack

The IGS-6325-20T4C4X supports both IPv6 and IPv4 protocols, making it possible for data centers, universities, telecommunications, and other organizations to transition to the IPv6 era with the least amount of financial outlay. This is because existing network infrastructure may be used with an IPv6 FTTx edge network.

Dependable Layer 2 features

Advanced switch management features like dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, and IGMP/MLD Snooping can be programmed into the IGS-6325-20T4C4X. The IGS-6325-20T4C4X permits fail-over and the operation of a high-speed trunk in combination with multiple fiber ports via link aggregation of supporting ports.

Strong Security

For implementing security at the edge, the IGS-6325-20T4C4X provides a thorough layer 2 through layer 4 Access Control List (ACL). By rejecting packets based on source and destination IP addresses, TCP/UDP ports, or predefined standard network applications, it can be used to limit network access. Along with these other security features, it also has 802.1X user, device, and MAC-based authentication. To protect user privacy, communication between edge ports can be stopped using the private VLAN capability. Along with these features, the IGS-6325-20T4C4X offers DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection to guard against IP snooping attacks and toss ARP messages with erroneous MAC addresses. The time and effort required by network managers to build highly secure business networks has significantly decreased.

Outstanding Traffic Control

Strong traffic control and QoS capabilities are included in the IGS-6325-20T4C4X to improve connection services provided by telecommunications and ISPs. Wire-speed Layer 4 traffic classifiers and bandwidth limits are two of the QoS features that are very beneficial for applications used by multi-tenant buildings, multi-business buildings, telecommunications companies, and network service providers. Additionally, it enables the business environment to fully utilize the constrained network resources and ensures the finest transmission quality for VoIP and video conferencing.

A 10Gb Ethernet solution that is adaptable and extensible

A significant advancement in Ethernet technology is 10G Ethernet. The IGS-6325-20T4C4X's 10G SFP+ slots each enable dual speed and either 1000BASE-SX/LX or 10GBASE-SR/LR. The administrator may now choose the best SFP/SFP+ transceiver based on the transmission distance or the transmission speed required to expand the network effectively thanks to its 4-port, 10G Ethernet link capabilities and additional 4-port 1G Ethernet link capacity. The IGS-6325-20T4C4X offers a sizable processing capacity and a wide bandwidth.

A Mechanism for Intelligent SFP Diagnosis

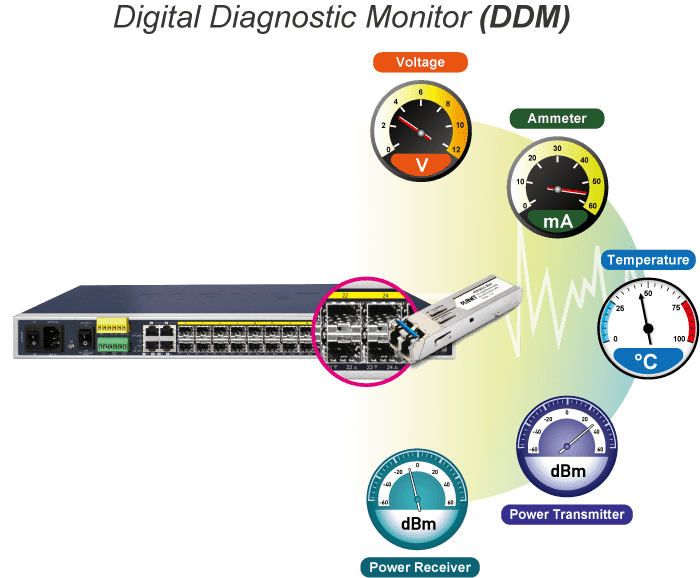

The SFP-DDM (Digital Diagnostic Monitor) capability is supported by the IGS-6325-20T4C4X, which makes it much easier for network administrators to quickly monitor real-time SFP parameters such optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

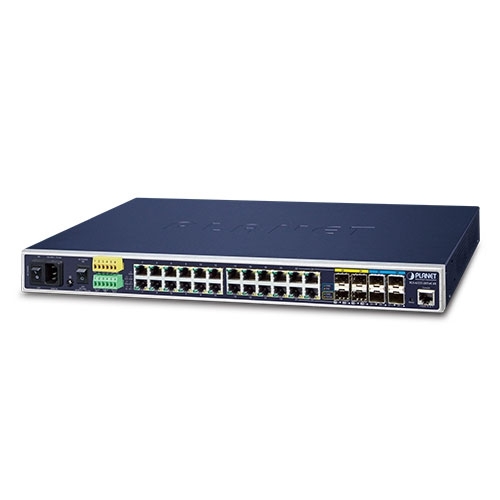

IGS-6325-20T4C4X Industrial L3 20-Port 10/100/1000T + 4-Port Gigabit TP/SFP + 4-Port 10G SFP+ Managed Ethernet Switch
